Airmax Koiair Mini

PPoiairmini Koiair Mini $399.99


  • Highlights
  • Specifications
  • Downloads

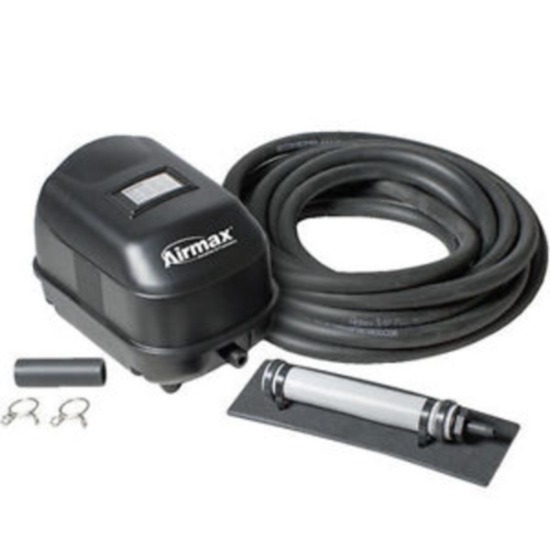

KoiAir Mini Aeration Kit provides powerful aeration to water gardens and features. Designed as a complete aeration solution, the KoiAir Mini contains everything you need to introduce aeration to large water gardens and features with a quick and simple installation.

Powerful Aeration

High Efficiency Aeration Pump - Running on 17 watts, the whisper-quiet SilentAir KA20 aeration pumps are the heart and soul of our KoiAir Mini aeration units. Costing virtually nothing to run, you can feel good about providing constant aeration to your pond.

EasySet Weighted Airline - Our heavy-duty flexible 15' airline is designed to sink the pond's bottom even when filled with air. EasySet 3/8" airline is extremely resistant to cuts, snags and kinks for maximum performance with minimal headaches.

Diffuser Plate Assembly - The mini plate diffuser utilizes a sturdy base plate and incorporates a 3/8" barbed inlet for quick hook-up to the included EasySet airline while providing threaded female outlets to accommodate 1 membrane diffuser stick.

Membrane Stick Diffusers - Designed to improve oxygen absorption, the 6" long membrance diffuser stick delivers all of the performance of an air stone without the hassles of replacing cracked stones or frequent cleanings due to debris accumulations. Virtually maintenance-free, the membrane diffuser stick resists clogging and their flexibility eliminates the possibilities of cracking and leaking.

Included Check Valve - Water tends to climb aeration airlines when your aeration pump is powered down. The airflow check valve prevent back pressure on the compressor. Allowing oxygen to travel outwards from the pump and preventing water from traveling into the lines when not in use. Preventing potential water damage to your aeration unit.

Protect Your Investment - In order to stay out in the elements, Airmax® recommends covering the KoiAir Mini with a Small TrueRock Boulder Cover (sold separately).

Compressor Dimensions 9"L x 6"W x 6.5"H
Recommended Pond Size Up to 4,000 Gallons
Diffuser Plate 1 - Mini Plate
Airline 15'
Air Flow 0.80 CFM
Max Diffuser Depth 4'
Wattage 17 Watts
Voltage 115 Volt
Amperage 0.15 Amps


Warranty 3-Year
Power Cord Length 6'
